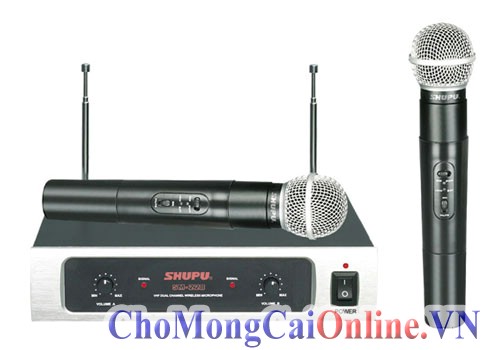

Bộ thu phát âm thanh không dây Shupu SM-228

MODEL:

SM-228

Carrier Wave Frequency range

170~280MHz

Frequency Oscillation Mode

Crystal

Channels

Dual CH

Frequency Responses

50Hz~18KHz

Working distance

60 feet

Carrier Wave stability

±5PPm≤10KHz

Image Interference Ratio

>80dB

S/N Ratio

>105dB(1KHz-A)

Sensitivity

-105dB(12dB S/N AD)

T.H.D.(1KHz)

<0.5%@1KHz

AF Output Impedance

2.2kΩ

Display

LCD

Operations Voltage

12-16V DC 300mA

Output Connector

2XLR Balanced Socket Unbalance TRs⊙6.3mm Socket

Dynamic Range

>110dB

Stability

±0.005%

Frequency Deviation

±48KHz

Spurious Emissions

<-60dBc

Radio Frequency Output Power

10mW

Power Consumed

≤100mA/9V

Battery

9Vx1
